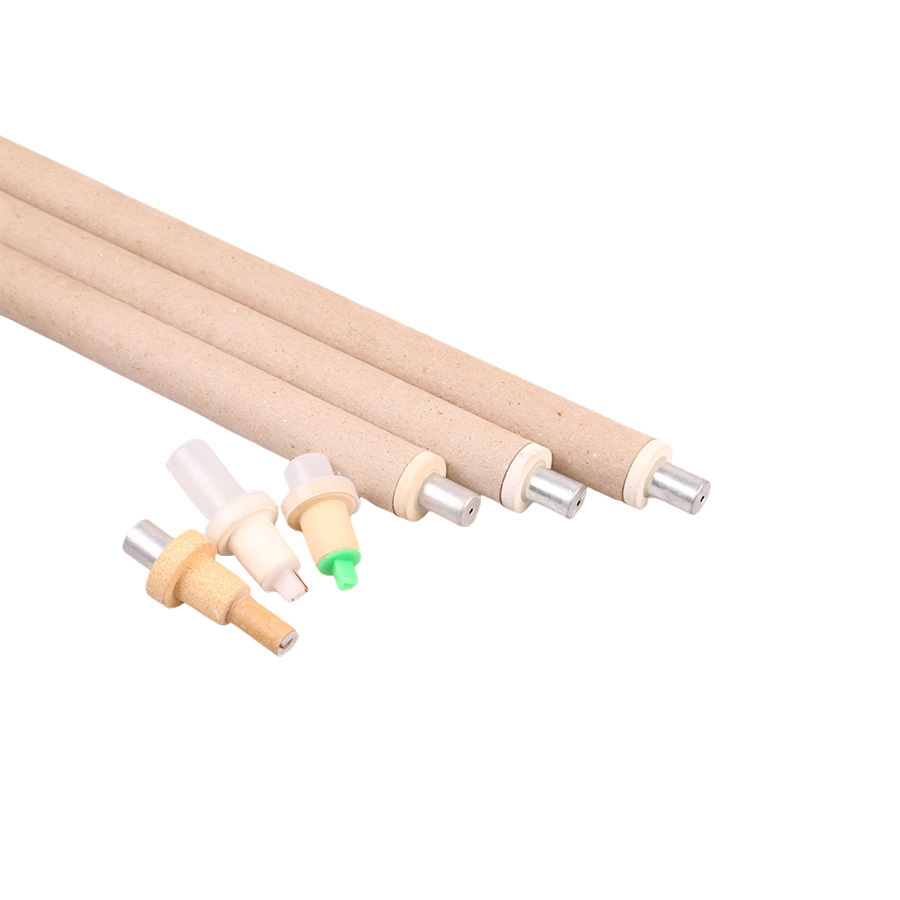

The rapid temperature measuring thermocouple is used to measure the temperature of molten steel and high temperature molten metal. It is a one-time consumption thermocouple. Its working principle is based on the thermoelectric effect of metal, using the temperature difference between the two ends of the thermocouple to measure the temperature of molten steel and high molten metal. This electric couple is characterized by high measurement accuracy, fast response, lightweight structure, easy to use.
2. technical characteristics and specifications
Thermocouple Name | Model | Index No | Tolerance | Applicable temperature | Measurement time |
Best | Upper Limit |
|
Platinum Rhodium 30-Platinum Rhodium 6 | KB-602/604 | B | ±5 | 1400-1600 | 1650 | 3s |
Platinum Rhodium 10-Platinum | KS-602/604 KR-602/604 | S | ±5 | 1400-1600 | 1650 | 3s |
Platinum Rhodium 13-Platinum | R | ±5 | 1400-1600 | 1650 | 3s |
tungsten rhenium 3-tungsten rhenium 25 | KW(D)-602 | W | ±7 | 1500-1700 | 1800 | 3s |
Note: our company also produces 604 models of fast thermocouple
