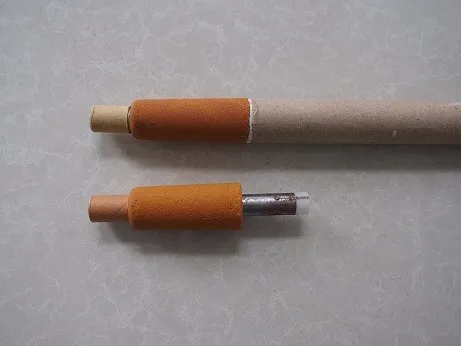

High Quality Oxygen Sensors Without Sand Body
Product Description
High Quality Oxygen Sensors Without Sand Body
Temperature&Oxygen Sensor Probe is used in open-hearth furnace,converter and refining mainly furnace,vacuum stove with in various steel-making stove molten steels,the scene of temperature and oxygen activity measures.
Temperature&Oxygen Sensor Probe used in field measurement of molten steel temperature and oxygen activity during smelting.
| Temperature & Oxygen Probe |
| Graduation Mark | Oxygen Activity Range | Paper Tube Inner Diameter | Probe Length |
| S/R/B | Low Oxygen Probe 1-50ppm
High Oxygen Probe 50-1000ppm | 18mm | 800mm/1300mm |
Temperature measuring Range | Oxygen activity | Oxygen potential | Response time | Rate of measurement |
1200℃-1750℃ | 1-1500PPM | -300, +300MV | 1.Temperature 3-5 s 2.Oxygen potential 4-8 s | ≥98% |
Functional Characteristics:
1. Aluminum content in the molten steel can be calculated when the oxygen activity is less than 10 ppm.
2. Carbon content in the molten steel can be calculated when the oxygen activity is more than 150 ppm.

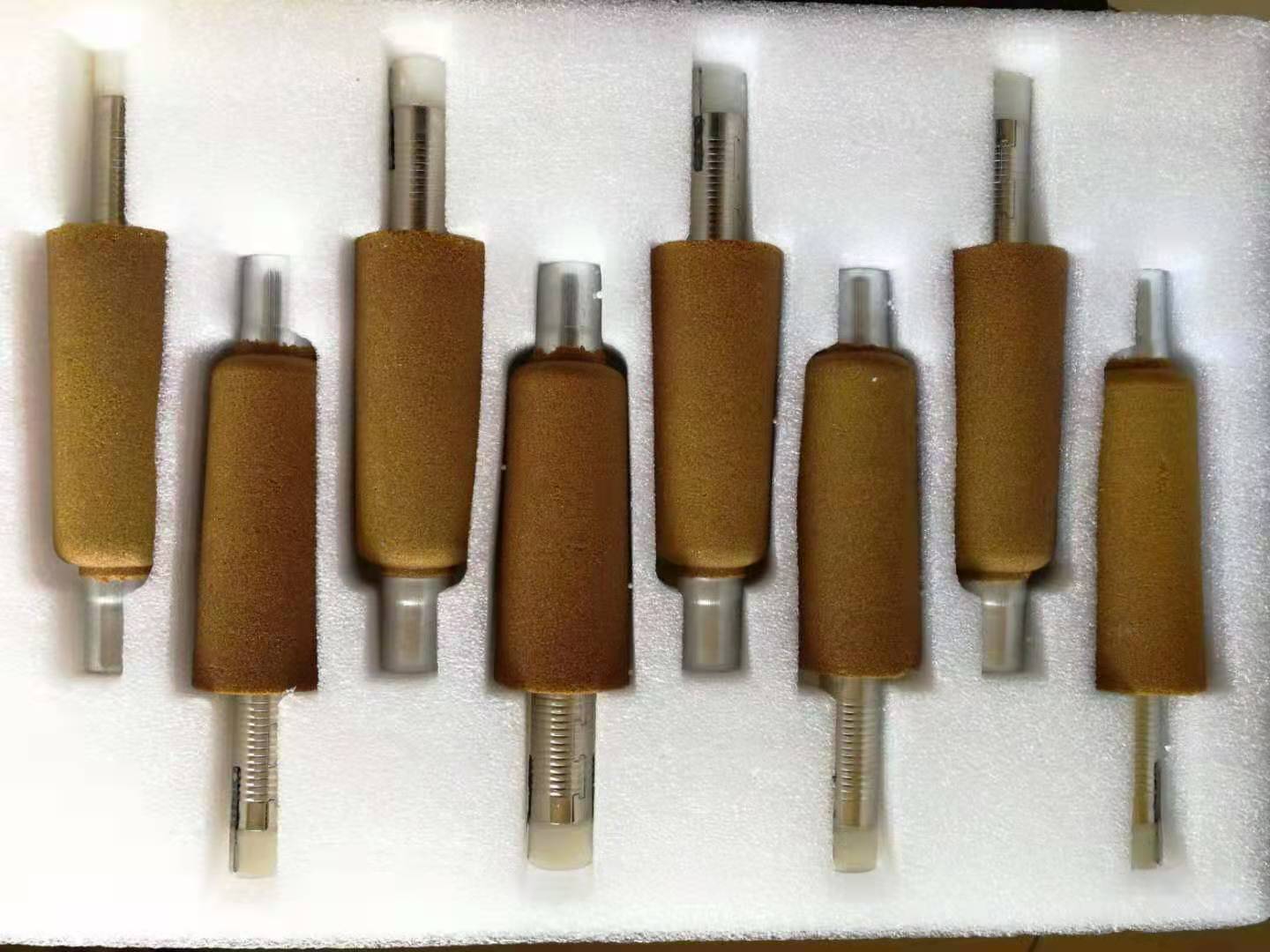

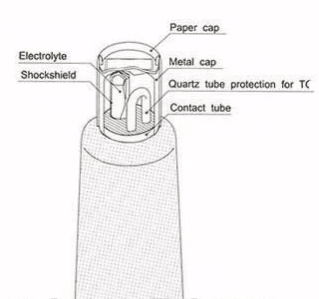

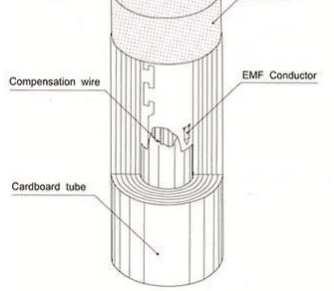

The oxygen half-cell is core part of temperature&oxygen measuring probe ,which is the company's own R & D and manufacturing.It measures the temperature range is 1450℃-1750℃.The outer dia.of the paper tube is 38mm,and the tube thinkness is 10mm.The total length is 1300mm or 800mm.
The main parameters:
Temperature measuring: Oxygen activity measuring: Oxygen electrical potential measuring:1.Range: 1450~1750°C 1.Range: 1~1000ppm 1.Range: -300/+350mv2.Tolerance: 3°C 2.Tolerance: >150ppm, 5ppm 2.Tolerance: 2mv3.Measuring Time: <4s <20ppm, 0.5ppm 3.Measuring Time: <5s 3.Measuring Time: <5s
![SD1_)I9TPWT7@]IH~DJ{}CB.png](//16606815.s21i.faiusr.com/4/ABUIABAEGAAgzJep4wUo0tX84gcwvwI4qwI.png)
