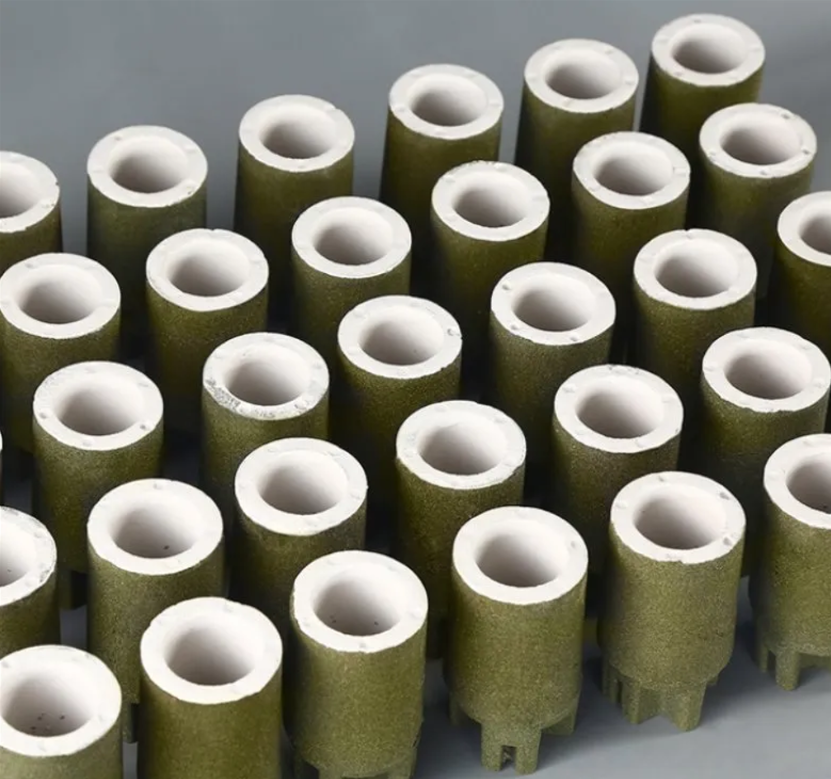

The fixed carbon cup is mainly used in the casting industry for thermal analysis of white iron, gray cast iron, ductile iron, etc., and is connected with supporting instruments to determine and calculate the carbon equivalent CEL, carbon content C, silicon content SI and other components on the spot.
Mainly divided into two kinds of square cup and round cup. Wire and tellurium are used German Isabellenhuette wire.
Technical parameters
Range: C:1-4.2%,Si:0-20%,CEL:2.5-5%.
Accuracy: ≤ ± 1 ℃,CEL ± 0.05%,C ± 0.05,Si ± 0.1%.
The K-wire in the carbon cup was purchased by German Isabellenhuette. High precision,
Accurate measurement data, good long-term stability, widely used in cast iron carbon, silicon, spheroidization effect, undercooling, eutectic degree and other quality parameters measurement.
Supporting instrument carbon meter
The intelligent molten iron quality management instrument in front of the fixed carbon meter furnace does not need to be operated by special personnel, laboratory or chemical reagents. This equipment is produced by introducing Japanese technology. It adopts Japanese Omron temperature transmitter, military-grade motherboard, built-in mathematical model, 10 composition detection lines and 10 spheroidization rate detection lines, which can meet the needs of one equipment to manage multiple products of different brands and can record 5000 measurement results according to the measurement time sequence, process reproduction can be carried out, and measurement records can be selected to automatically output measurement data to U disk. Gray iron can be carried out: carbon equivalent, carbon content, silicon content, tensile strength, maximum temperature, primary crystal temperature, eutectic temperature, thermal analysis temperature curve, measurement of molten iron quality and display of carburant, ferrosilicon and scrap steel after measurement.
