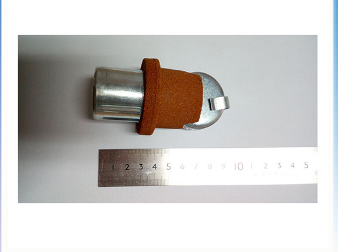

Molten Steel Immersion Round Sampler

产品详情
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)

Deoxider:Immersion
With/Without AL Or ZR
Paper Tube Length:
300-1500mm
Paper Tube Inner Diameter:
18mm/37mm/39mm
Surface Treatment:
Electroplating
Application:
Industrial
Analysis:
Spectral Analysis
Sample Size Diameter:
28mm/30mm/32mm/34mm/37mm
Sample Thickness:
12mm/14mm/15mm
Applicable to:
Molten Steel
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packed in carton,20 pieces/carton
Port
Tianjin Port
Lead Time :
The goods will be shipped in 7-20 days after receiving deposit

Disposable Steel & Cast Smelting Sampler for Factory



Product Description

When an expendable sampler was inserted into the hot metal liquid, under the static pressure, the hot metal liquid breaks the slag protective layer, through the sampler inlet, into the sampling chamber automatically. Then the alloying element content in the steel can be analyzed by spectral analysis.

Specification:

Product Name

Immersion Sampler

Type

QR-342Y-1200mm

Sampler Cap

34mm*12mm

Quartz Tube

8.8mm*40mm

Aluminium

0.3g

Slag cap

32.8mm*27mm

Inner diameter of paper tube

51(+/-1)mm

Outer diameter of paper tube

38(+/-1)mm


a)According to whether the deoxidant is added in sampler:

TypeImmersion molten steel sampler with deoxidantImmersion molten steel sampler without deoxidant
ModelQR-KQYQR-KQN


b)According to shape and size of sampler cup:



NameModelDimension
Immersion molten steel samplerQR-KQY/N-301Ø30*14mm
QR-KQY/N-302Ø30*12mm
QR-KQY/N-305Ø30*9mm
QR-KQY/N-341 Ø34*11mm
QR-KQY/N-342 Ø34*12mm
QR-KQY/N-32Ø32*13mm
QR-KQY/N-37Ø37*17mm

We have all kinds of shapes and sizes.Customers can choose the best ones according to the request and can also order the special sizes.

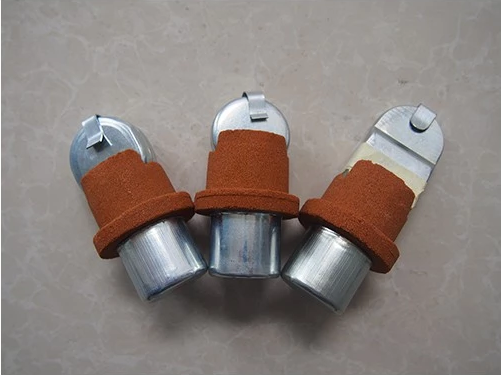

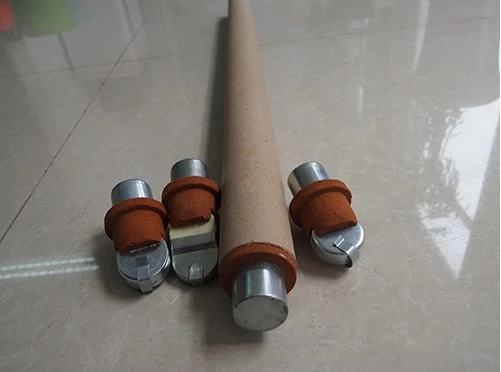

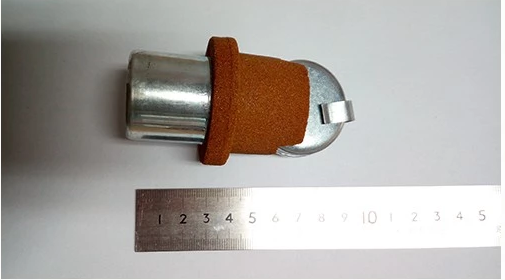

{~_BQNE2FY%A6L]JQF`9LUB.png~PYPI)9MLZG[SNG{G3H27`S.pngI$YYL$5}8Q2$@WILOAJQ0{Q.png8JMZZE@_RO(VIM36LL6$$EI.png

FAQ

Q: 1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?

A:Sample needs 1-3 days, mass production time needs 5-7 days for order less than 1000 pcs.

Q: 3. Do you have any MOQ limit?

A: Our MOQ is 10 pieces

Q: 4. How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

Q: 5. Do you offer guarantee for the products?

A: Yes,because All of product is made by hands,we have the production department control and all tested strictly by QC.
