Compound Sublance Probe

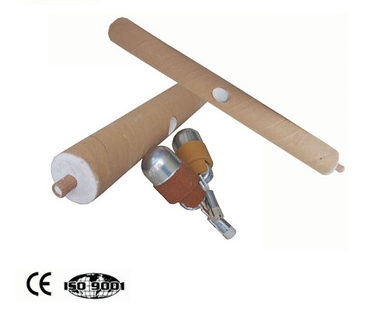

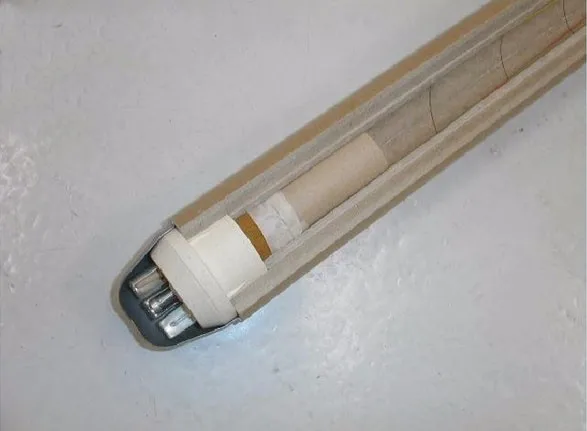

Immersion 2-in-1 Compound Sublance Probe

In the smelting process, it is sometimes necessary to combine the different functions of the

probe for testing, which is conducive to improving the production efficiency and reducing the cost.

Specification of compound probe

1. Type:YT-TS

  TOS With steel temperature measurement and sampling two functions.
2.Type:YT-TOS
  TOS With steel temperature measurement,oxygen content and sampling three functions.
3.Type:YT-TCS
  TCS With steel temperature measurement,carbon content and sampling three functions.
4.Type:YT-TCOS
 TCOS With steel temperature measurement,carbon content,oxygen content and sampling four functions.

Measurement parameters

Temperature measuring:    Oxygen activity measuring:    Carbon contect measuring:
1.Range: 1450~1750°C       1.Range: 100~1300ppm           1.Range: when<0.20% Tolerance:0.02%
2.Tolerance: 5°C               2.Tolerance: 10%                                 when 0.02%-0.05%Tolerance:0.04%
3.Measuring Time: <5s      3.Measuring Time: <8s                         when>0.05% Tolerance:0.06%

                                                                                     2.Measuring Time:<8s

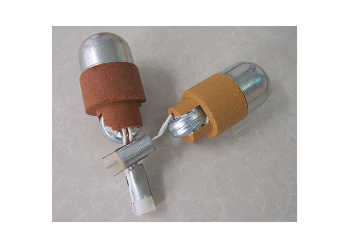

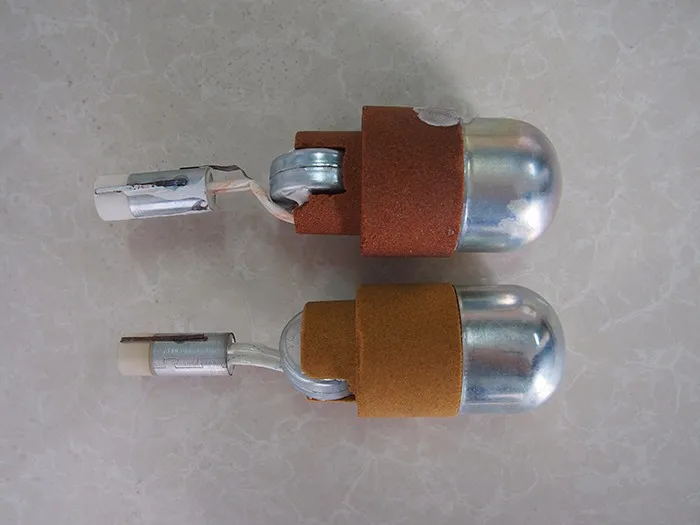

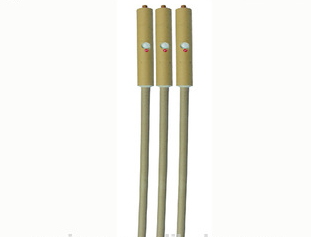

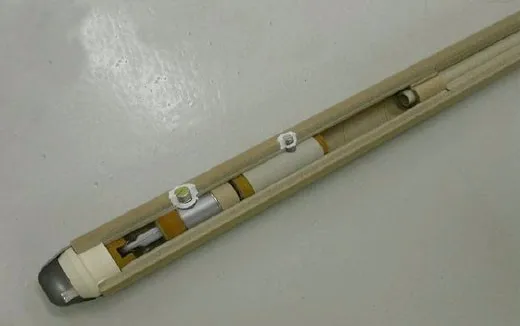

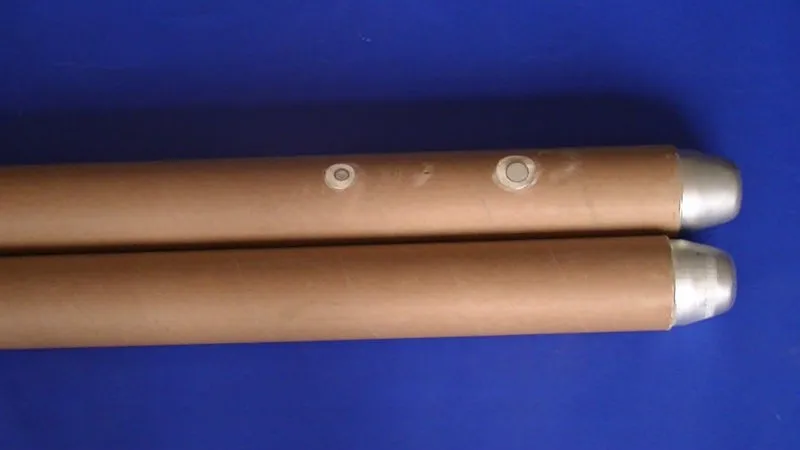

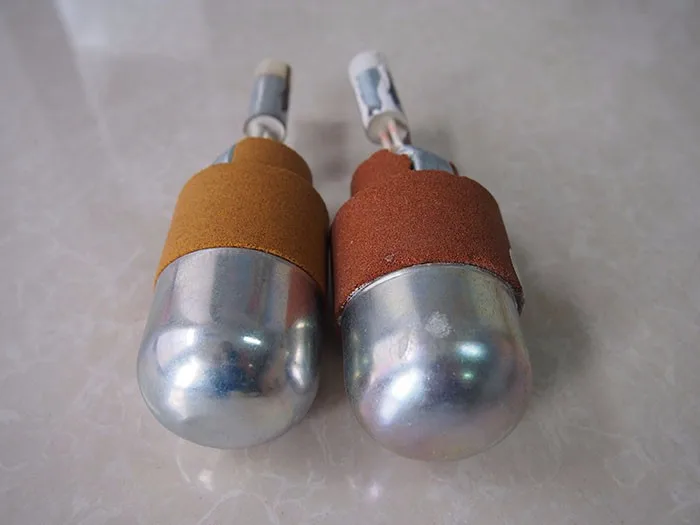

Product Image
